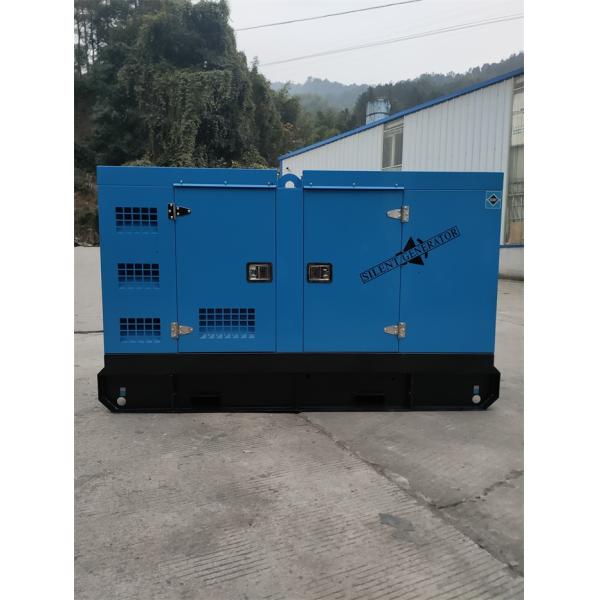

Silent DG Genset Weichai Diesel Generator - 80KW Rated Power 50Hz Frequency
Product Description:
Weichai Diesel Generating Set is a reliable and efficient power supply solution designed to provide continuous or backup power for many different applications. This set is powered by a Weichai diesel engine and is equipped with a brushless alternator. It is designed to provide a rated power of 80KW with a rated frequency of 50Hz. This Weichai Diesel Power Genset is available in a wide variety of rated voltages, such as 220, 230, 240, 380, 400, and 415V. This Weichai Diesel Generator System is designed with robustness and durability in mind to ensure a long and reliable service life. It is ideal for use in any environment and is capable of providing an efficient and reliable power supply solution.
Features:
- Product Name: Weichai Diesel Generator
- Brand: Weichai
- Rated Voltage: 220, 230, 240, 380, 400, 415V
- Usage: Continuous Or Backup Unit
- Rated Frequency: 50Hz
- Type: Silent DG Genset
- Weichai Diesel Power System
- Weichai Diesel Power Genset
- Weichai Diesel Generator System
Technical Parameters:
| Technical Specification: |
| Back-up 88kW Generating Set Specification |
| Genset Model | TG110WC | TG110WCS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 380/220V |
| Phase | 3 Phase, 4 Wires |
| Rate Current | 151.9A |
| Prime Power | 80kW / 100kVA |
| Standby Power | 88kW / 110kVA |
| Engine Model | WEICHAI WP4.1D100E200 |
| Alternator Model | Stamford UCI 274C |
| Controller | ComAp AMF20 |
| Weight & Dimensions |
| Length (mm) | 1950 | 2500 |
| width (mm) | 850 | 1100 |
| Height (mm) | 1300 | 1500 |
| Weight (kgs) | 1250 | 1800 |
| Engine Specification |
| Brand | Weichai |
| Engine Model | WP4.1D100E200 |
| Prime/Standby power (kw) | 90 / 100 |
| Injection | Indirect |
| Aspiration | Turbocharged& Aftercooled |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 105 x 118 |
| Displacement (L) | 4.087 |
| Cooling | water |
| Compression Ratio | 18.23:1 |
| Engine Oil capacity (L) | 13 |
| Coolant Capacity ( In radiator) | 13 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | @ 50Hz |
| 100% Load (L/h) | 22.6 |
| 75% Load (L/h) | 17.1 |
| 50% Load (L/h) | 11.8 |
| 25% Load (L/h) | 5.9 |
| Alternator Specification |
| Brand | Cummins Generator Technologies |
| Model | Stamford UCI 224G |
| Rate Output | 80kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | ComAp |
| Model | AMF20 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, 3000Hours Spare Parts |
Applications:
Tecgen Weichai Diesel Generator, model TG110WCS, is a factory/manufacturer produced power generating set made in Fuzhou, China. It is certified by ISO, CE, SASO, and CIQ, and comes with a minimum order quantity of 1 unit. The price is negotiable and the packages include plastic film package or polywooden package. The delivery time is within 15 working days with payment terms of T/T or L/C, and it has a supply ability of 300 units per month. The rated frequency and speed are 50Hz and 1500rpm/min respectively, and the rated power is 80KW / 100kVA. It is designed for continuous or backup unit.
Customization:
Weichai Diesel Generator is a high quality and reliable power generator set from Tecgen. It is powered by Weichai diesel engine and is available in 50Hz rated frequency and 220/230/240/380/400/415V rated voltage. As a professional Weichai Diesel Power System Supplier, Tecgen provides customers with customized Weichai Diesel Power System with the model number TG110WCS. The rated power is 36KW and the rated speed is 1500rpm/min. It is certified by ISO / CE / SASO / CIQ and comes with a minimum order quantity of 1 unit. The price is negotiable and the packaging details are plastic film package or polywooden package. The delivery time is usually 15 working days and we accept payment terms of T/T / L/C. Tecgen is a factory/manufacturer that provides supply ability of 300 units per month.
Packing and Shipping:
Weichai Diesel Generator Packaging and Shipping Weichai Diesel Generator is securely packaged in a custom-designed box, lined with foam to protect the product from damage during transit. The box is strong enough to withstand any external pressure and vibration. The package is shrink-wrapped and loaded onto a pallet for shipping. The pallet is designed to prevent the package from shifting or moving during transportation. Weichai Diesel Generator is shipped using reliable and secure delivery service. We guarantee that the product will arrive safely and on time.
FAQ:
- Q: What is the brand name of the Weichai Diesel Generator?
A: The brand name is Tecgen Weichai Diesel Generator. - Q: What is the model number of the Weichai Diesel Generator?
A: The model number is TG110WCS. - Q: Where is the Weichai Diesel Generator made?
A: The Weichai Diesel Generator is made in Fuzhou, China. - Q: What certifications does the Weichai Diesel Generator have?
A: The Weichai Diesel Generator has ISO / CE / SASO / CIQ certifications. - Q: What is the minimum order quantity for the Weichai Diesel Generator?
A: The minimum order quantity is 1 unit.
